Race Sprung Ceramic Clutch Kit <br> Suzuki Swift Sport ZC32S <br> 2011-2017

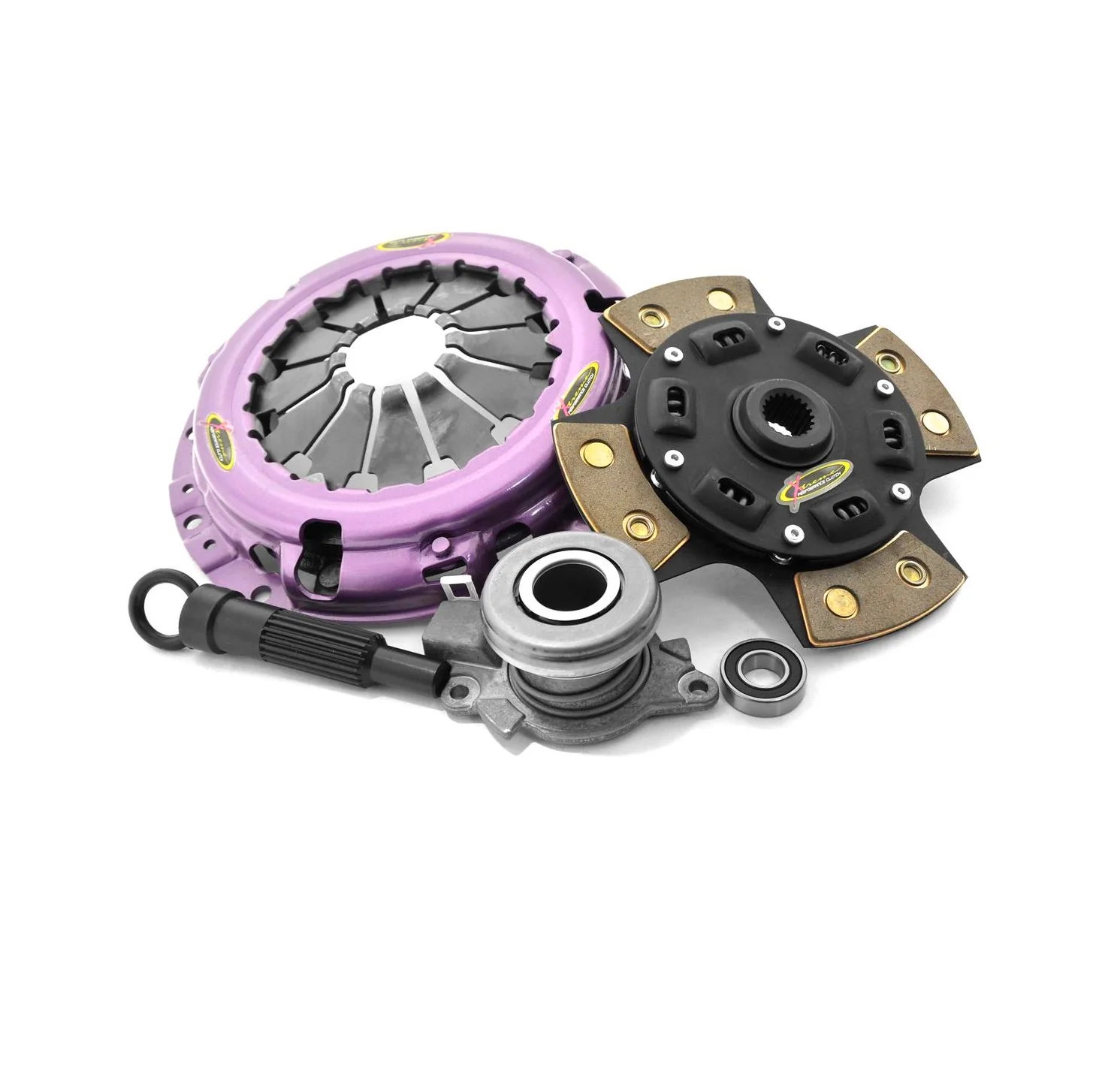

Xtreme Performance - Race Sprung Ceramic Clutch Kit
To Fit
Suzuki Swift Sport M16A ZC32S 2011-2017
The sprung ceramic clutch kits - Stage 1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.
Specifications:
- Torque capacity 390Nm
- Clamp load Increased over standard
- Sprung Ceramic Friction Disc
- Extra Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count : 20
Clutch Disc Spline Diameter (mm): 22.4
Torque (Nm): 390
Flywheel Step: +0.5mm
Design: Single Plate
Stage: Stage 2R
Recommended for : Race Vehicles - Stage 2R
Weight [KG]: 6.71
Special order item - See T&C.
